CMM-Manager is task-oriented, highly intuitive and offers powerful measuring and reporting capabilities. Main features are collision-free CAD-based path definition, virtual path simulation and accurate feature measurement for both tactile and vision probing.

Key benefits

Intuitive - Task-oriented, user-friendly interface

Easy – Drag and drop program structure

Powerful - CAD based alignment, programming, measurement & reporting

Flexible - Unified CMM, arm & vision software

True 3D multi-sensor - Vision / Laser AF / Tactile / Rotary indexer

(PICTURES NEEDED)

Multi-sensor 3D CAD Collision- Free Measurement

Complete Alignment Toolbox

Canned alignments for simple part geometry

Advanced alignments for any part regardless of complexity or geometry

Create alignment from features measured by touch probe, vision sensor or laser AF

CAD import - 2D DXF / IGES - 3D IGES / STEP - 3D Native formats

Efficient Measurements

Pick CAD features to create collision-free probe paths for tactile and vision measurements

Seamless transition from touch probe, vision probe and laser AF measurements

Optimize measurement routine by drag-n-drop program editing

Extensive Reporting

Print, save or output reports to external systems such as SPC software.

Excel, PDF, Text, HTML, CSV

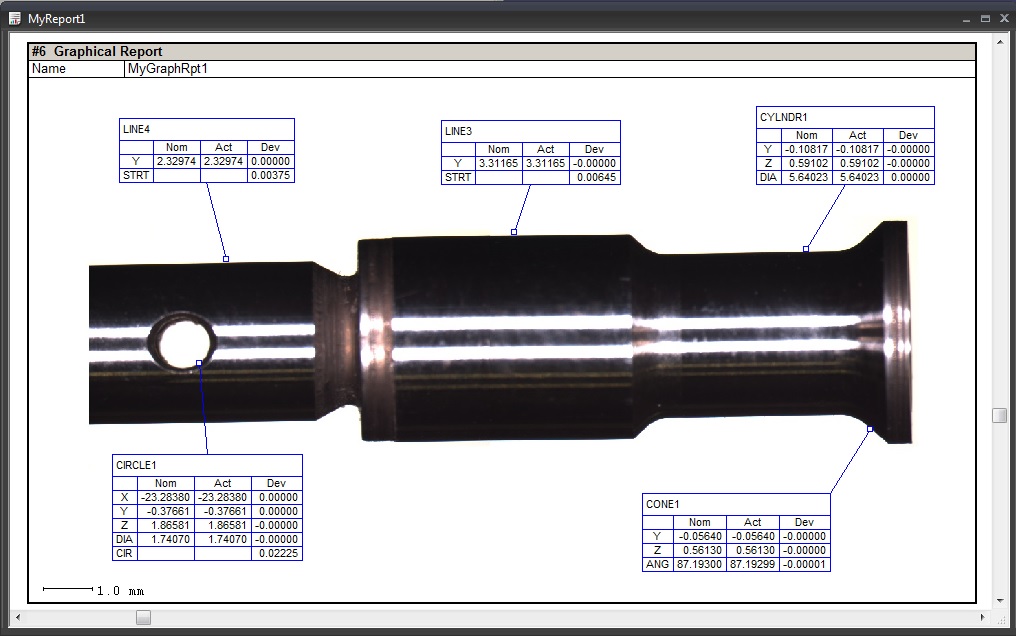

3D Color Graphical Reports

Cross section analysis

GD&T - ASME Y14.5 2009

Automated Program Execution

Batch execution for multi-part inspection

Automated measurement for parts arranged in rectangular grid

Create custom program library with Shop Floor Launcher

Stroke XYZ (mm) with TP20 with TP200	(CHART NEEDED. ALL THE SPECS ARE FORMATTED WITH A CHART)
